Laboratory Capability

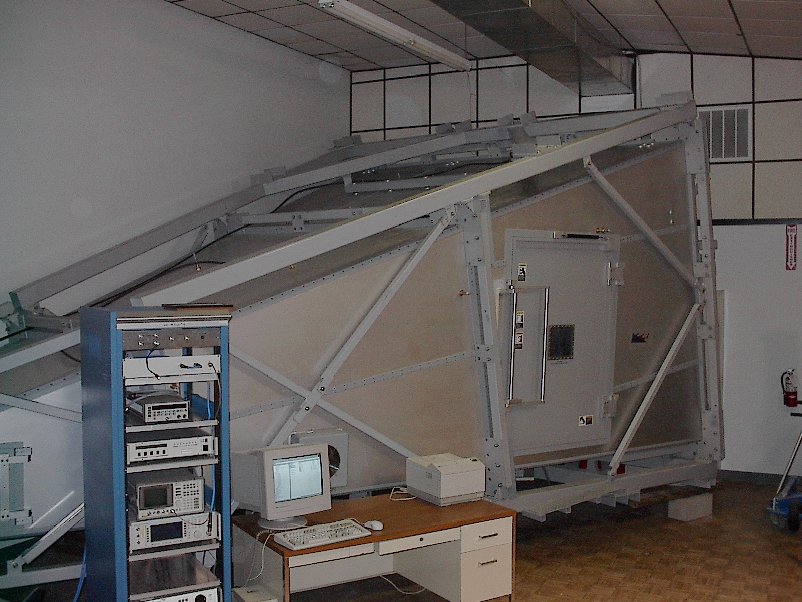

TEM Consulting maintains a highly competent laboratory to support its engineering and consultation services.  The most impressive feature of the laboratory is the 1750 GTEM, that provides the base for both RF emissions and immunity measurements.

RF Emissions Testing

  • 20 Hz to 26.5 GHz

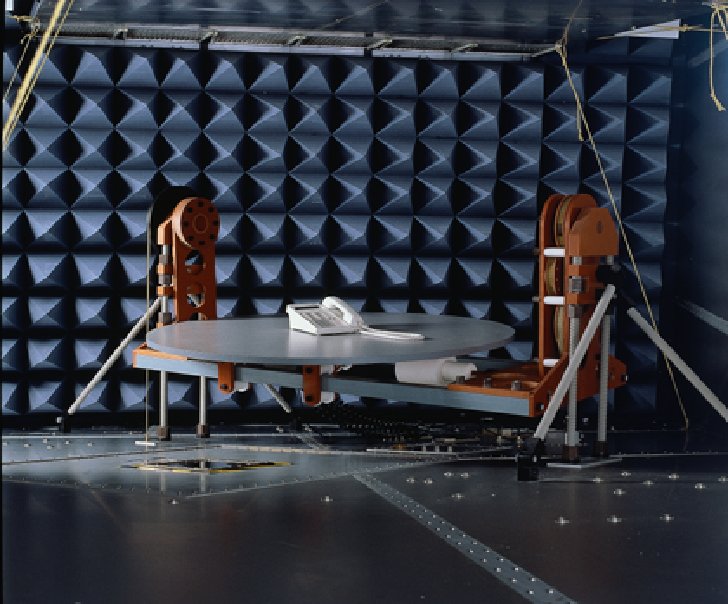

  • Automatic, air controlled turntable

  • 1.75 m Septum to Floor GTEM test area

  • Large test volume
    (1 m vertical by 1.2 m horizontal)

  • Full hemispherical scan capability

  • Spectrum Analyzer or RF Receiver

  • Computer controlled testing

RF Immunity Testing

  • 1 Hz to 2 GHz

  • Automatic positioner

  • 300 W, maximum RF power

  • Computer controlled testing

  • Full hemispherical scan capability

  • Spectrum Analyzer or RF Receiver



Near-Field Scanning Capability

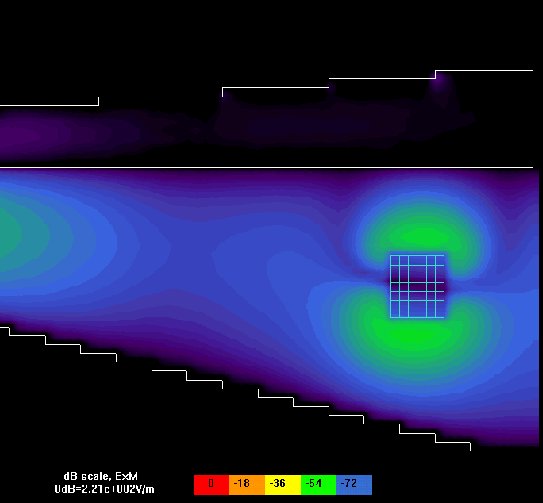

Electromagnetic Computational Analysis

  • EMC Analysis
    FDTD
    (Finite Difference Time Domain)
    &
    MoM
    (Method of Moments)

  • Experimental and Theoretical Verification

  • PC Readable Output

Accessibility Analysis
